Shaped Thimble G414 for Marine US Type Lifting And Rigging Hardware Heart

Name: Shaped Thimble G414 for Marine US Type Lifting And Rigging Hardware Heart
Brand: SOLAR
Price: 1 USD

Brand Name : SOLAR

Model Number : US Type Heavy Duty Thimble G414

Certification : ISO

Place of Origin : Made in China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, D/P, T/T

Supply Ability : depends on Order

Delivery Time : 3 days

Packaging Details : Pallet or other way on customers' request

Product Name : US Type Heavy Duty Thimble G414

Size : 1/8 - 3 1/2 (in)

Wire Rope Dia : 3mm -89mm

Surface : Electric Galvanized or Hot Dipped

Stock or Not : some size Yes

Safety Factor : normally 1:4

Condition : New

Usage : Shipping, Marine, Lifting, Construction otc

Marking : WLL， Size

Packing : Pallet/Plastic Bag/Wooden Box , on your request

HS Code : 732690

Port of Origin : Shanghai China

Contact Now

US Type Heavy Duty Thimble G414

Features:
Forged Carbon Steel.
Surface: White & Yellow Zinc Plated, Hot Dip Galvanized.
Used for Webbing Straps, or Tow chains.
Ultimate Load is 4 times the working load limit.

Shaped Thimble G414 for Marine US Type Lifting And Rigging Hardware Heart

Wire Rope Diameter(in)	Wire Rope Diameter(mm)	WEIGHT/100pcs(kg)	Dimension(mm)
Wire Rope Diameter(in)	Wire Rope Diameter(mm)	WEIGHT/100pcs(kg)	A	B	C	D	E	F	G	H

1/8	3	2.8	49.53	33.53	28.92	17.79	6.35	4	1.29	3.56
3/16	5	2.8	49.53	33.53	28.92	17.78	6.35	4	1.29	3.56
1/4	6	3.06	55.62	41.4	38.1	22.35	10.41	7.11	1.52	5.84
5/16	8	5.1	63.5	47.75	45.97	26.92	12.7	8.64	2.03	7.11
3/8	10	11.34	73.5	54.1	54.1	28.7	16	10.41	2.79	8.64
7/16	11	13.61	82.55	60.45	60.45	31.75	18.29	11.94	3.3	9.65
1/2	13	23.13	92.2	69.85	69.85	38.1	20.57	13.46	3.56	10.41
9/16	14	23.13	92.2	69.85	69.33	38.1	22.35	15	3.56	10.41
5/8	16	34.02	107.95	82.55	79.5	44.45	24.64	16.76	4.06	12.7
3/4	19	66.68	127	92.25	99.77	50.8	31	19.81	5.59	16.76
7/8	22	79.38	139.7	107.95	107.95	57.15	35.05	23.88	5.59	19.05
1	25	124.74	155.7	114.3	125.48	63.5	39.62	26.92	6.35	22.35
1 1/8-1 1/4	28-32	181.44	177.8	130.3	149.35	73.15	45.97	33.27	6.35	28.7
1 1/4-1 3/8	32-35	370.59	230.12	165.1	172.97	88.9	55.63	36.58	9.65	28.7
1 3/8-1 1/2	35-38	532.98	228.6	158.75	181.1	88.9	65.02	39.62	12.7	28.7
1 5/8	41	771.12	285.75	203.2	206.5	101.6	69.09	43.67	12.7	35.05
1 3/4	44	805.14	309.63	228.6	215.9	114.3	72.14	46.74	12.7	33.27
1 7/8-2	48	1134	384.3	304.8	263.65	152.4	78.49	53.09	12.7	38.1
2 1/4	51	1791.72	435.1	355.6	301.75	177.8	92.2	60.45	16	41.4
2 3/8	57	2220	457.4	377.9	301.75	177.8	95.92	63.92	16	43
2 1/2	64	2850	522	399.1	316.2	187.8	102.6	66.6	16	45.5
2 3/4	70	3012	496.2	418.2	320	187.8	109.65	73.65	18.2	47.9
2 7/8	73	3600	522	442	330	196	116	76	19.88	50.83
3	76	3850	540	465	330	196	120	80	19.88	51.64
3 1/2	89	4400	660	505	380	240	139	95	21.88	54.6

Shaped Thimble G414 for Marine US Type Lifting And Rigging Hardware Heart

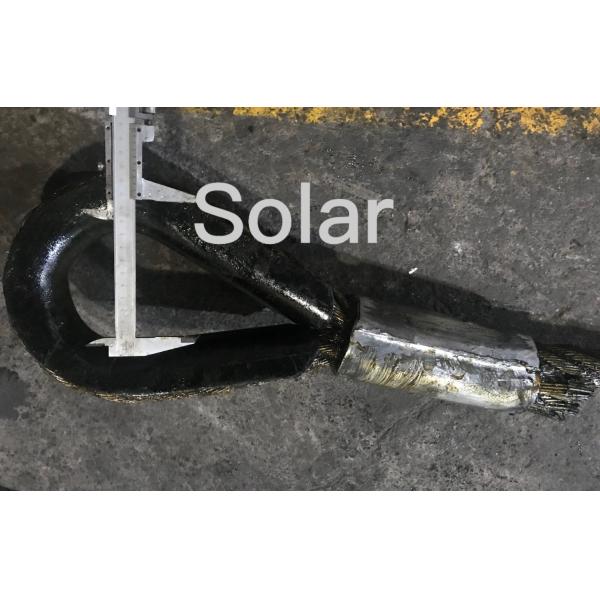

Shaped Thimble G414 for Marine US Type Lifting And Rigging Hardware Heart Images
